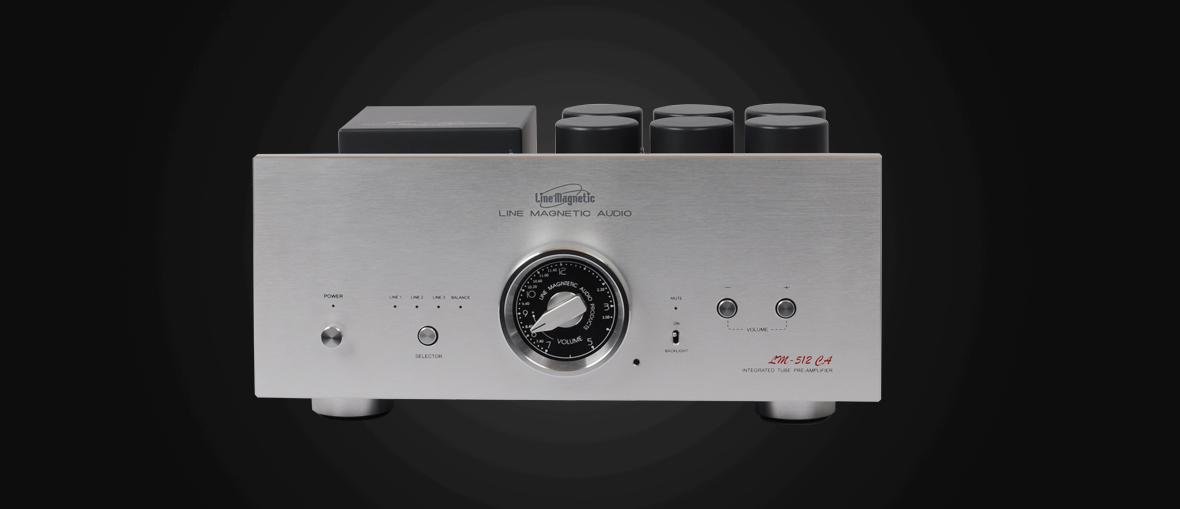

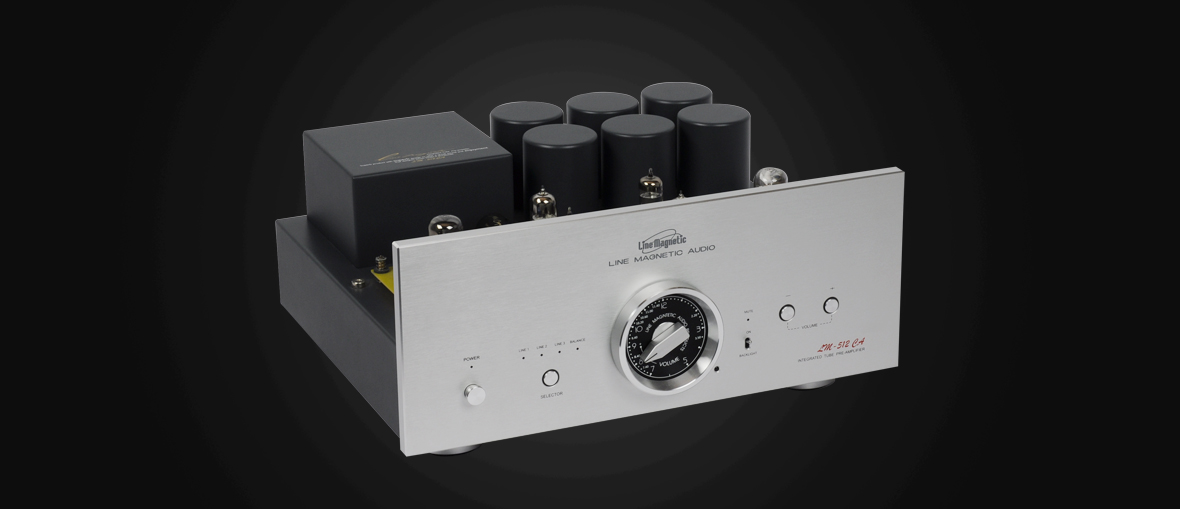

LM-512CA Preamplifier

Product features:
●With four high quality nickel sheet/POE film alloy high quality wide rang EI as input and
output of audio signal input/output transformer coupling
●Using specially designed for the native EI type double power supply transformer
 (independent) around a track
●Use 6KZ8 as voltage amplifier output stage in 6922 as drive pipe, the RCA 22DE4 as
high voltage rectifier rectifier bravery
●Left and right channels completely independent design, and strive to two channel tone
●At the cost of using Multicap audio capacitor, the IRC resistance, axial capacitor, philips
BC panasonic relay, gold-plated CMC electric woodwind, high-quality RCA terminal,
balance the socket
●Function of infrared remote control can make audio input selection, volume and mute
remote control operation

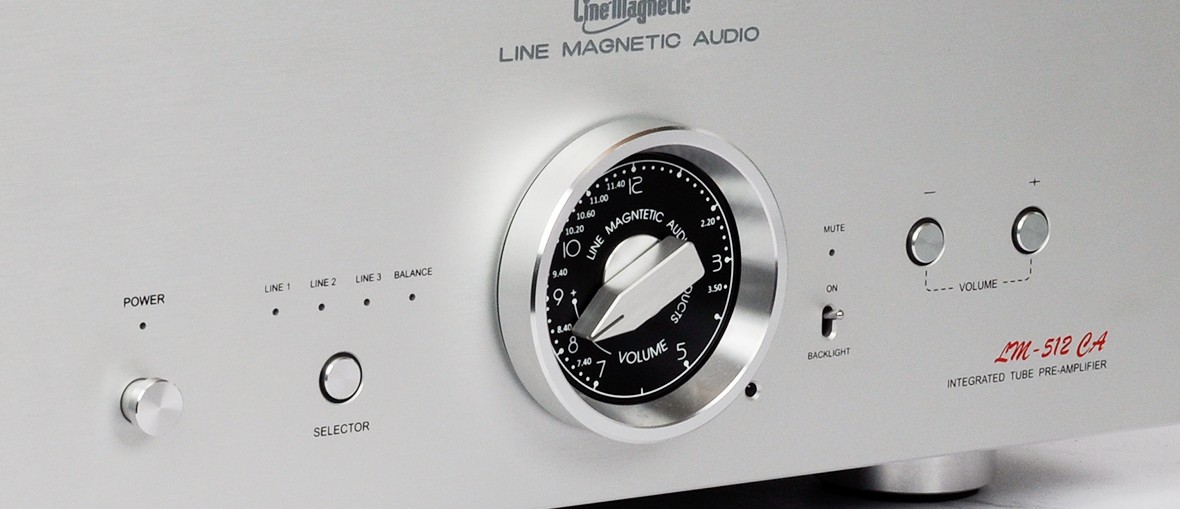

●Successfully to the intuitive having a unique style into the volume dial design like that
design idea of the atmosphere
●Boot mute delay function (about 30 seconds)
●Selects the Japan ALPS high-grade motor potentiometer
●Convenient installation drawing plug-in valve cap



Specification
-The whole machine gain: 20 db
-S/N Ratio: 90 db
-RCA frequency response: 17 hz ~ 100 KHZ (3 db)
-balance (after the output transformer) frequency response: 15 Hz~30 kHz(3db)
-THD: 0.5% (1 KHZ)
-RCA input sensitivity: 250mV (output terminal 2v)
Balance (after the output transformer) input sensitivity: 500 mv (output terminal 2 v)
-Input impedance: 100 k Ω (RCA) the input impedance balance 600Ω input port
-Output impedance: 600kΩ  balance output 600Ω (RCA)
-Tube Complement: 6KZ8 (thor) 6922 (universal) 22DE4 (RCA)
-Dimension (WxDxH) : (430 x 383 x196) mm3
-Power Consumption: 45 w
-working conditions: temperature 0℃~40℃ Moisture: 20% ~ 80%
-storage conditions: temperature: - 20℃~70℃ Moisture: 20% ~ 90%
