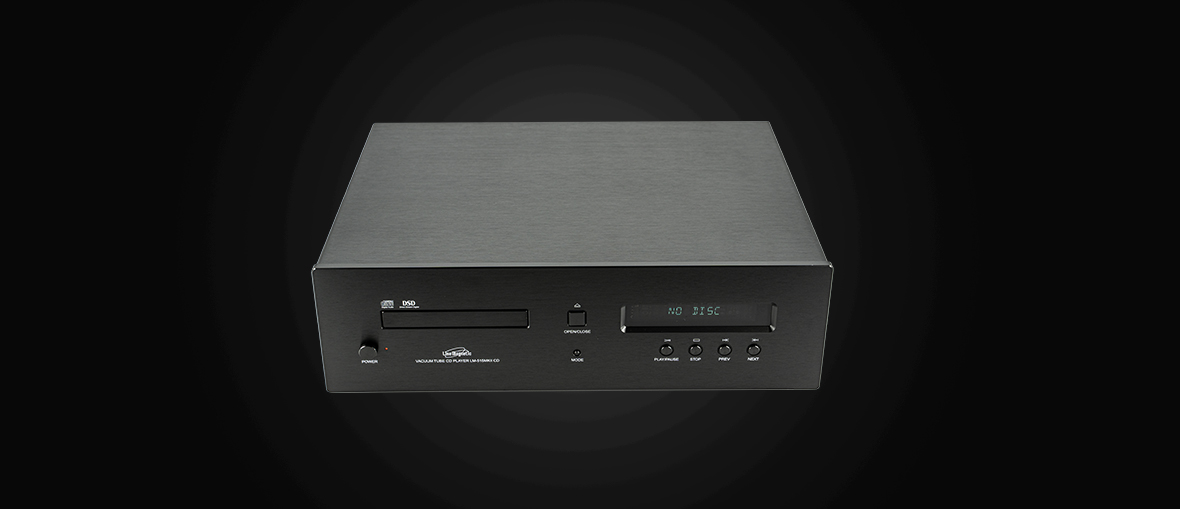

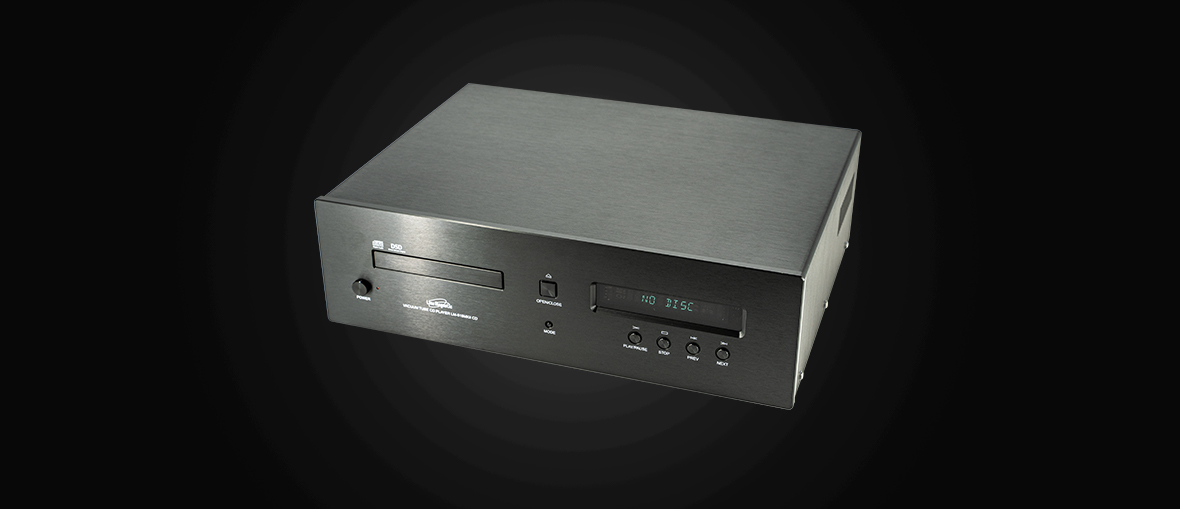

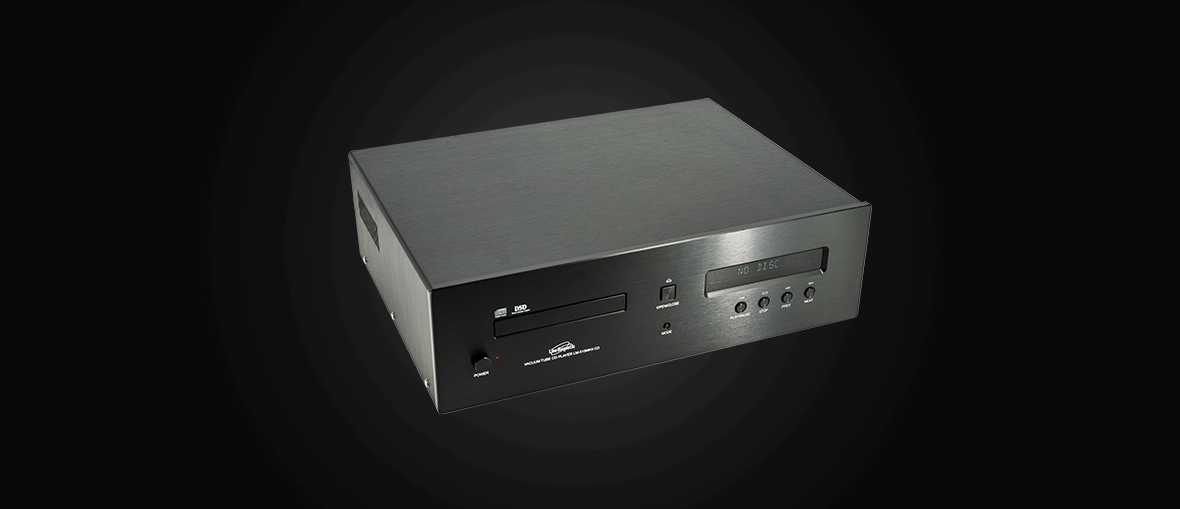

LM-515CD 电子管输出CD机

产品特点:

●本产品为CD碟片播放及PC-USB解码两用机器

●使用为本机专属设计的O型变压器及EI型变压器分别给数字与模拟电路独立供电

●采用高级索尼铁架机架机芯

●解码芯片使用美国ESS公司顶级芯片ES9016

●I/V转换使用陶瓷封装的5532

●输出使用两支6KZ8电子管

●红外遥控功能

●OLED显示屏显示相关功能工作信息

●一路PC-USB输入功能可支持最高192KHz采样率无损音频

●一组模拟RCA及全平衡信号输出接口,数字RCA同轴、BNC同轴、光纤、平衡信号输出接口

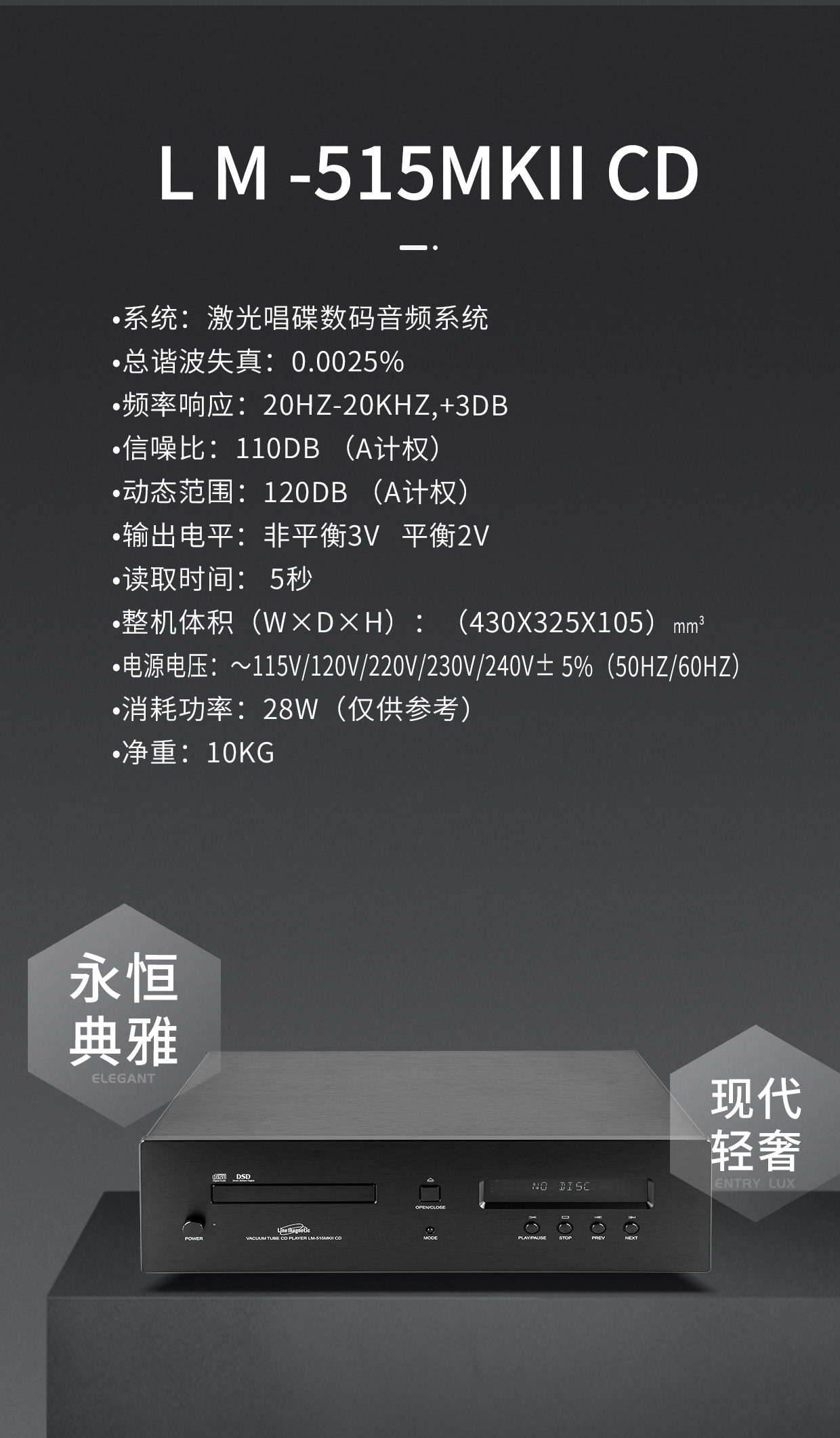

 技术参数:

-系统:激光唱碟数码音频系统

-总谐波失真:0.0025%

-频率响应:20Hz-20KHz,+3dB

-信噪比:110dB (A计权)

-动态范围:120dB (A计权)

-输出电平:非平衡3V   平衡2V

-读取时间: 5秒

-整机体积(W×D×H):(430X325X105)MM3

-净重:10kg

-消耗功率:28W(仅供参考)

-数字同轴输出特性:符合S/PDIF标准

-工作条件:温度:5℃~40℃    湿度:9%~90% (不得结露)



Product features

●This product is a CD disc player and a PC-USB decoding dual-purpose machine

●The machine used for exclusive design of O type transformer and transformer type

EI respectively for digital and analog circuit with independent power supply

●Using advanced Sony iron rack movement

●The use of American decoding chip ESS company‘s top chip ES9016

●The use of I/V conversion ceramic package 5532

●The output using the two 6KZ8 electron tube

Infrared remote control function

●OLED display shows the correlation function of job information

●One PC-USB input function can support the maximum sampling rate of

192KHz lossless audio

●A group of simulated RCA and full balanced signal output interface, digital RCA

coaxial, BNC, optical fiber, coaxialbalanced signal output interface



Specification:

-System:Tube Compact Disc Player

-THD:0.0025%

-Frequency response:20Hz-20KHz,+3dB

-S/N Ratio:110dB(A Weighted)

-Dynamic Range:120dB(A Weighted)

-Output levels:Unbalanced 3V, Balance 2V

-Read time:5S

-Dimension (WxDxH):430mm x 325mm x105mm

-Net weight:10kg

-Power Consumption r:28w

-Coaxial/Optical Output: Compatible with S/PDIF standard.

-Working conditions:temperature 5 ℃~ 35 ℃ Moisture: 9% ~ 90% (not dew)
