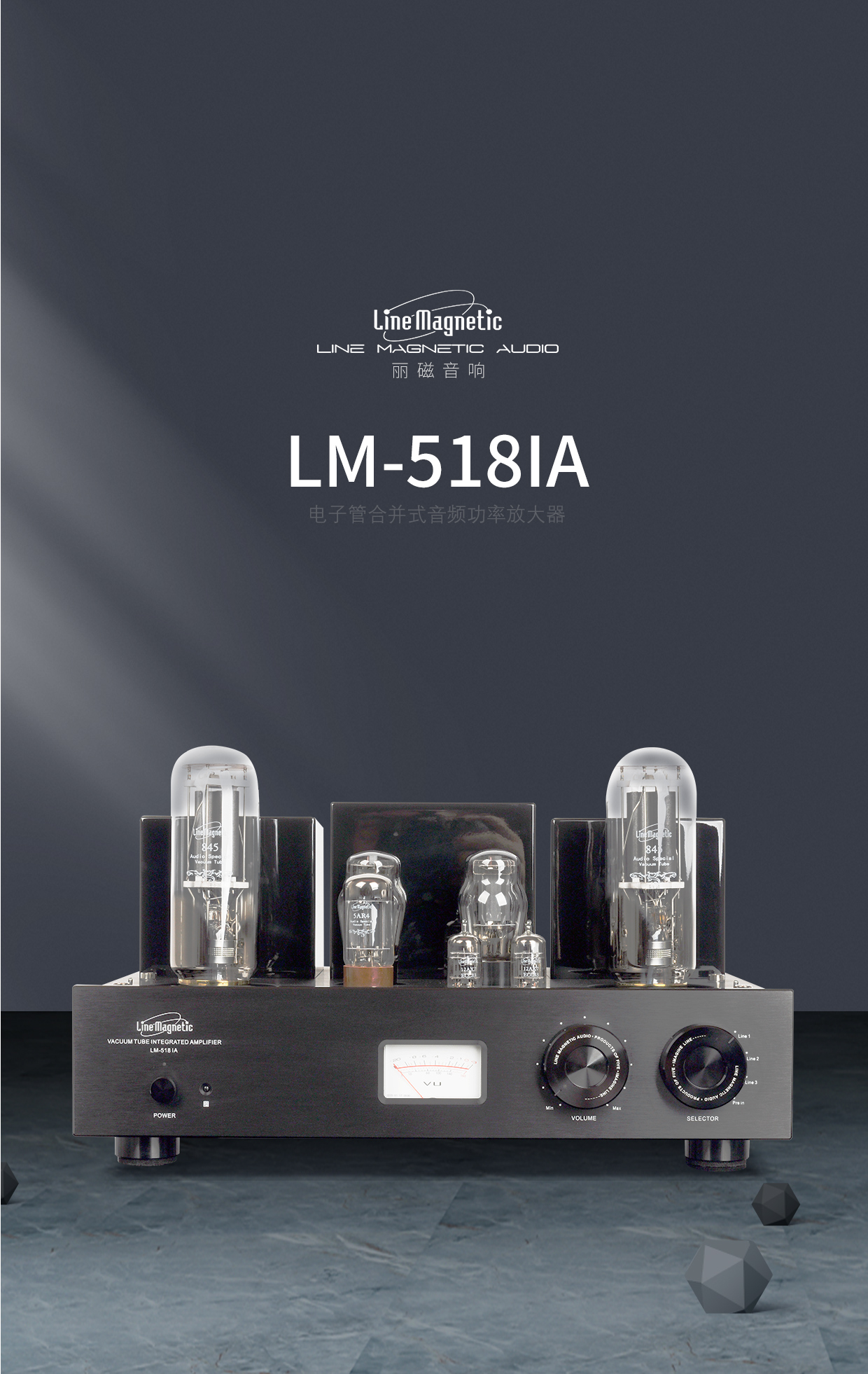

LM-518IA 合并式功率放大器

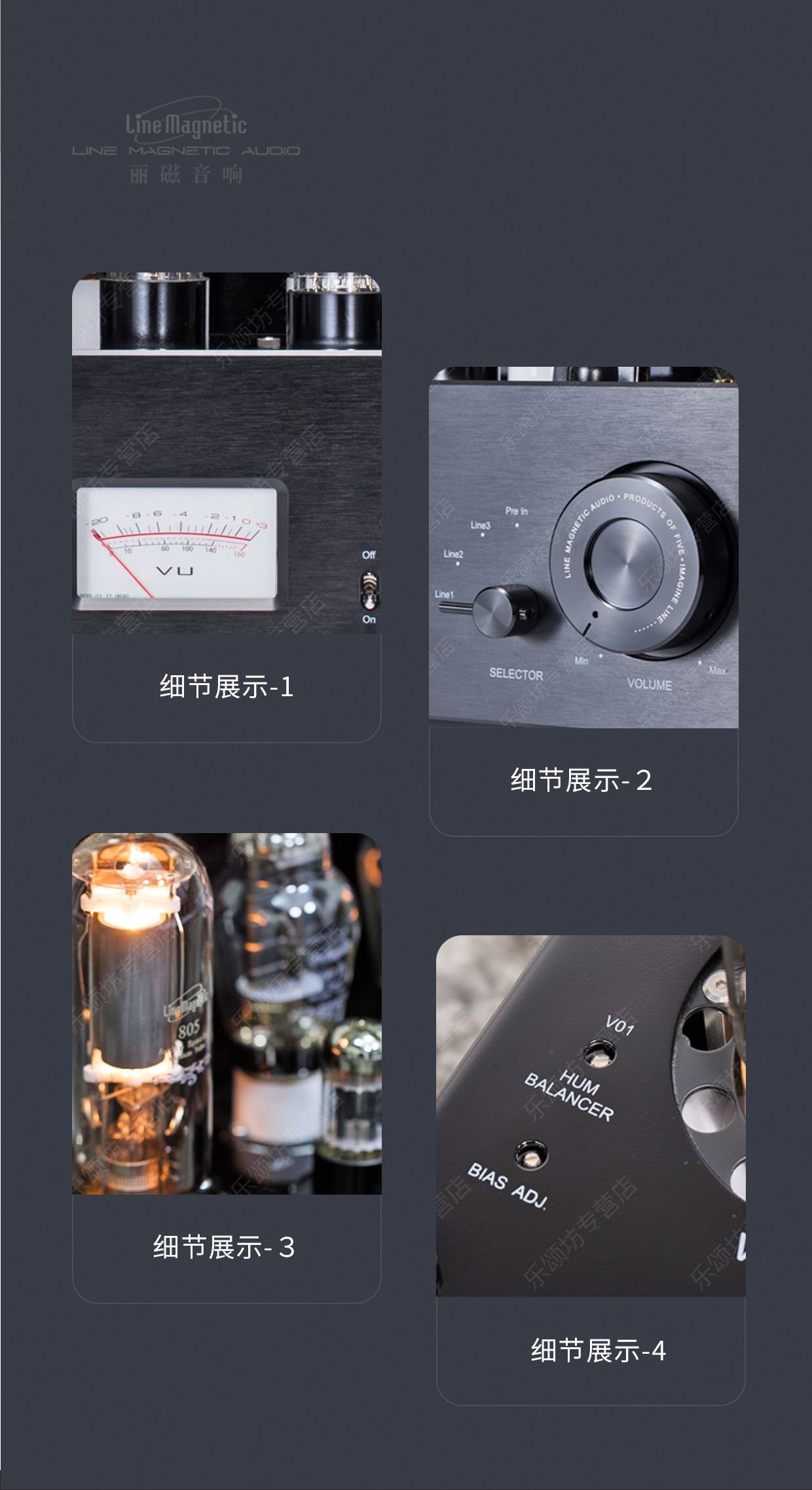

-外置845电流调整(BIAS ADJ.)和哼声调整(HUM BALANCE)


















-输入灵敏度:220mV  纯后级800mV





-工作条件:温度:0℃~40℃    湿度:20%~80%

-储存条件:温度:-20℃~70℃    湿度:20%~90%

Product features:

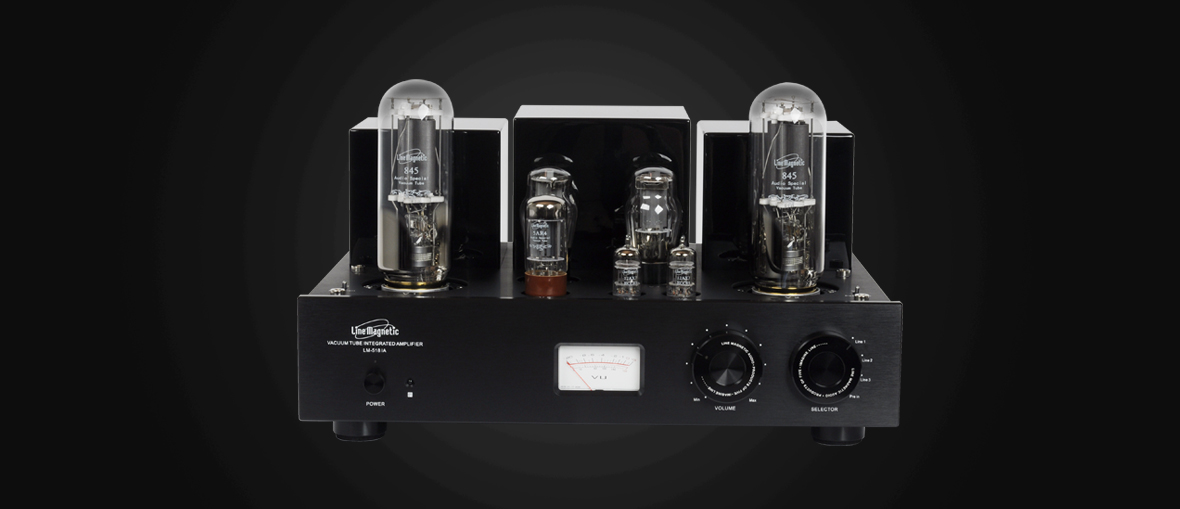

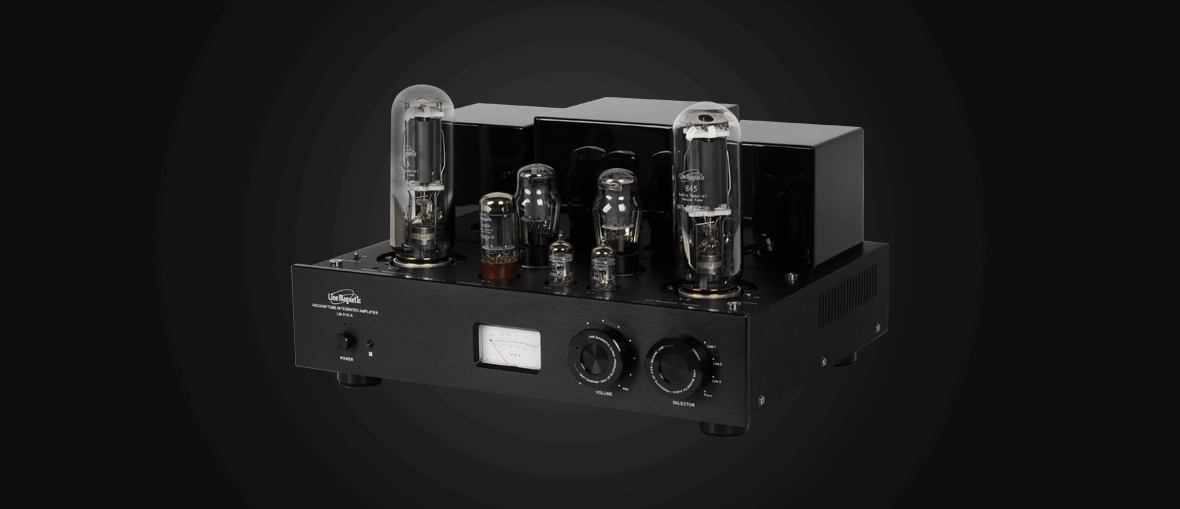

●Twenty-two watts per channel, Single Ended Triode design, Pure Class A Integrated

Stereo Amplifier with 845 output power tubes.

●All tube Integrated with 12AX7 input tubes for voltage amplification, 6P3P driver tubes,

5AR4 rectifier tubes and 845 output tubes. Driver tubes 6P3P can also be replaced by

different kinds of driver tubes and you can select which tubes you prefer judging by

different sounds.

●4 pairs of inputs and speaker terminals for 4, 8 and 16 ohm speakers are located on the

back panel.

●User bias control has been used for bias adjustment and one meter has been added to

the front plate to allow you to monitor bias with ease.

●External Hum Balance adjustment for sound adjustment.

●Specially designed EI transformers for power supply and two EI output transformers

with wide bandwidth are applied.

●JapaneseALPS volume potentiometer, German N-cap coupling capacitors etc Audio

grade components have been applied.

●Standard with remote control.

●Hand made construction with the finest point-to-point wiring.

●Soft Start and time-delay circuit. (30 seconds).

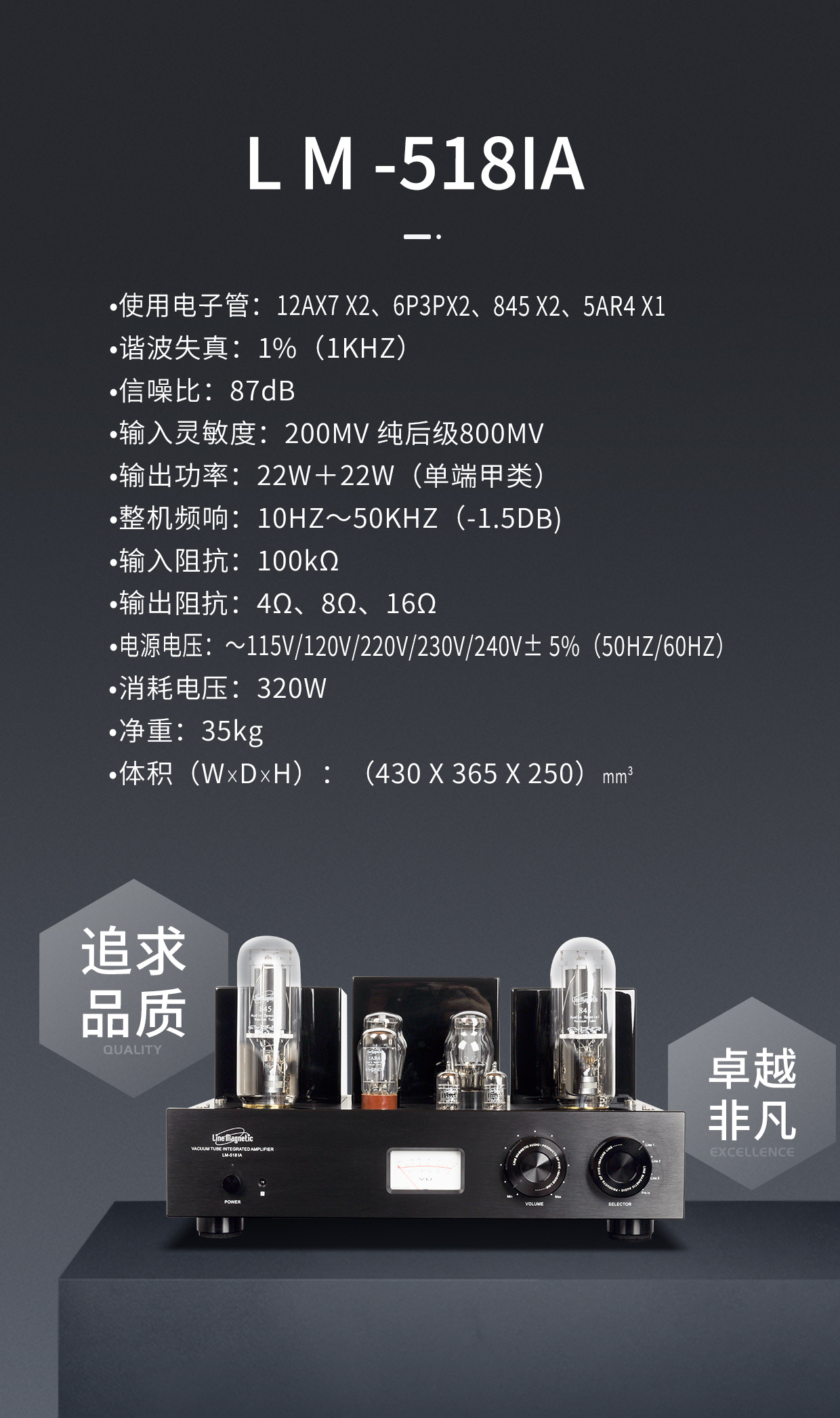

-Power output:22W+22W

-Harmonic distortion: 1(1kHZ) (A weighted)


-Frequency response:10Hz~50kHz(-1.5dB)

-S/N Ratio:87dB(A weighted)

-Input Impedance:100kΩ

-Output impedance: 4 Ω, 8 Ω, 16 Ω

-Input Sensitivity:200mV(Integrated)

-Tube Complement:12AX7 x2、6P3P x2、845 x2、5AR4 x1

-Dimension (WxDxH):430mm x 365mm x 250mm

-Net weight: 35kg

-Power Consumption: 320w

-Working conditions: temperature: 0 ℃ to 40 ℃ Moisture: 20% ~ 80%

-Storage conditions: temperature: - 20 ℃ ~ 70 ℃ Moisture: 20% ~ 90%
